LED Downlights
Low profile, durable retrofit kits, designed for long life and low maintenance

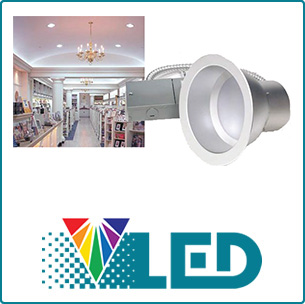

Venture Lighting’s LED downlight retrofit kits are low profile, durable, and designed for long life and low maintenance. Designed to fit into existing 8” and 10” diameter openings, these retrofit kits quickly and easily upgrade metal halide wattages up to 175W or 150W and compact fluorescent wattage up to 2x42W with an energy saving LED 54W. These downlights are mounted to an extruded aluminum heat sink which is designed to ensure proper thermal management of the system. This design allows for a cooler running LED chip which leads to longer lifetime, better efficacy, and color consistency and comply with all US and Canadian safety standards.
| Watts | Order Code | Energy Star Model# | Lumen Output | CCT | CRI | Diameter | Replace Existing | IES File | Lighting Design Tool | |
|---|---|---|---|---|---|---|---|---|---|---|
| CFL | MH | |||||||||
| 18W | DL61337 | VL1-DLB018X-MDA-VVAD00 | 1440 | 4000K | 80+ | 6" | Up to 2x26W | Up to 70W | ||
| 40W | DL29815 | VL1-DLC040X-MDA-VVAD00 | 2870 | 4000K | 80+ | 8" | Up to 2x32W | Up to 100W | ||
| 54W | DL20658 | VL1-DLC054[W|D|N|C]-MDA[WH|BK|BZ|SL]AD00 | 4100 | 4000K | 80+ | 8" | Up to 2x42W | Up to 175W | ||
| 54W | DL31852 | VL1-DLD054[W|D|N|C]-MDA[WH|BK|BZ|SL]AD00 | 3790 | 4000K | 80+ | 10" | Up to 2x42W | Up to 175W | ||
