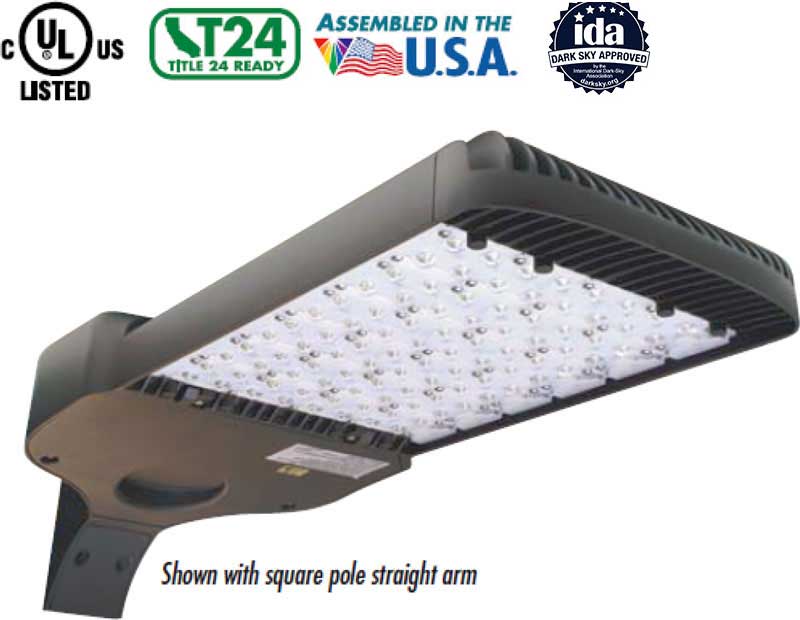

Description
Venture Lighting’s Environ area light fixtures couples a sleek, reliable design with precise ANSI optical distributions to make them the ideal upgrade for area/site, roadway, and security applications. Perfect for new construction or easy replacement of existing installations.
Construction
Rugged die cast housing finished in a durable powder coat finish and with vandal resistant polycarbonate lens. To ensure weather-tight protection, each optical assembly is sealed with a silicone gasket. Luminaires are rated for an ambient operating temperature range of -40°C to 40°C.
Electrical
The power supply has a range of 120-277V, 50/60 Hz or 347-480V input. LED driver is isolated from the LED light engine for enhanced driver reliability. 0-10V DC dimming capability is standard. The luminaires are rated for wet locations. Each fixture has a built-in 10kA surge protector. Each fixture is supplied with a 7-pin receptacle and a shorting cap. A motion sensor can be factory installed.
| Input Voltage | |
|---|
| Wattage | 120V | 208V | 240V | 277V | 347V | 480V | Replaces HID Wattages |
|---|
| 150W | 1.30 | 0.73 | 0.63 | 0.55 | 0.41 | 0.30 | 250W V, 400W H |
| 200W | 1.70 | 0.97 | 0.83 | 0.73 | 0.55 | 0.40 | 400W V, 1000W H |
Mounting
Twistlock photocell accessory can easily be mounted into the fixture. The fixture is designed for use with various mounting accessories: Square and round pole arms, wall mount, slipfitter or mast arm. The slipfitter and the mast arm fit a 2-3/8" tenon. All mounting accessories are ordered separately.
Ordering & Model Number
Select your required configuration and click "Get Order Code".
Note: *3000K color temperature and fixed mounting must be selected for IDA approval
Performance Data
| Distribution | Lumens | | Lumen Maint. | Calc. L70@25°C |
|---|
| Wattage | Type | 3000K | 3500K | 4000K | 5000K | CRI | @50,000 hrs✝ | Amb.(hrs)✝ |
|---|
| 150W | Type II | 16800 | 17400 | 17960 | 18240 | 70 | 99% | >500,000 |
|---|
| Type III |
| Type IV |
| Type V |
| 200W | Type II | 23560 | 24480 | 25400 | 25690 | 70 | 99% | >500,000 |
|---|
| Type III |
| Type IV |
| Type V |

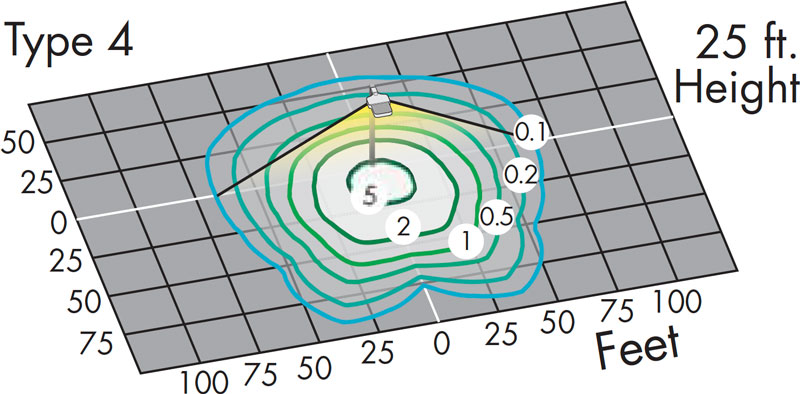

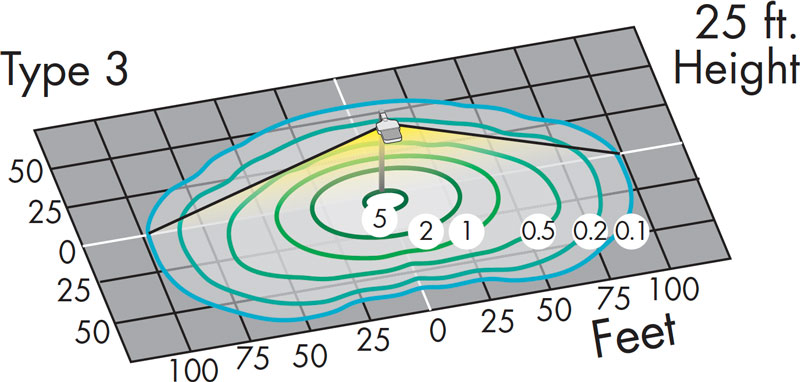

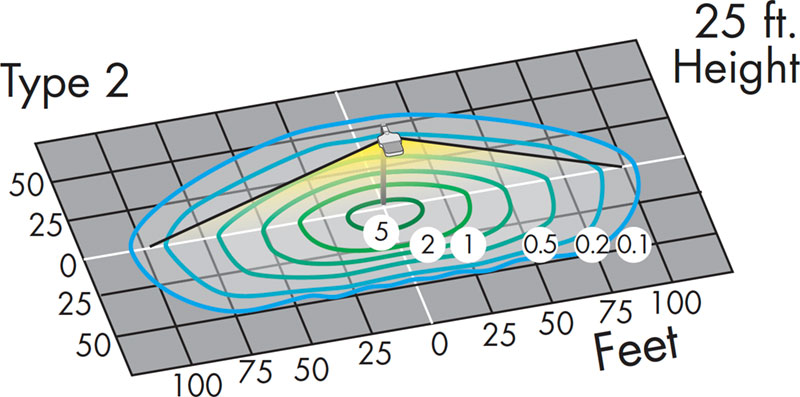

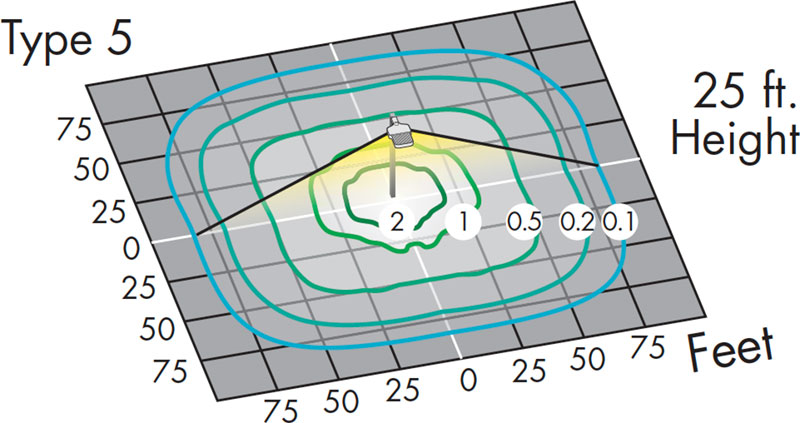

Photometrics (Photometrics shown are for 150W)
✝Lumen maintenance data is based on LED testing per IESNA LM-80-08 and projected per IESNA TM-21-11

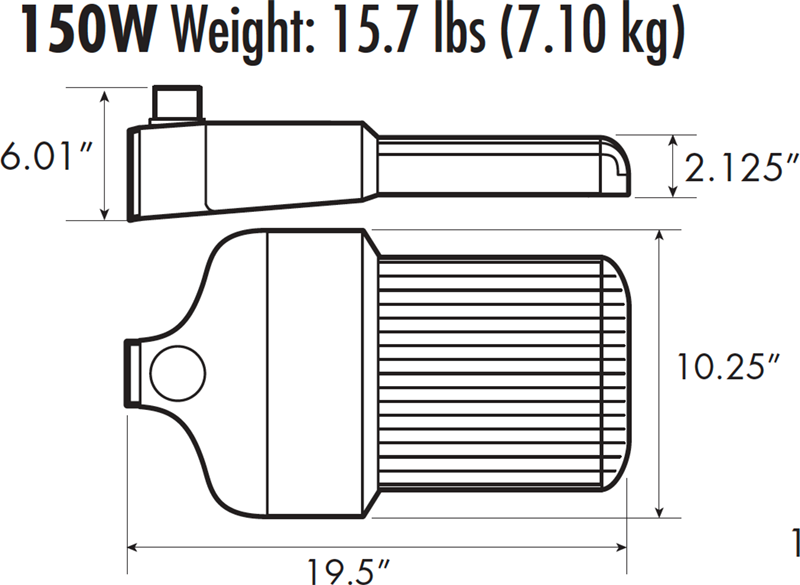

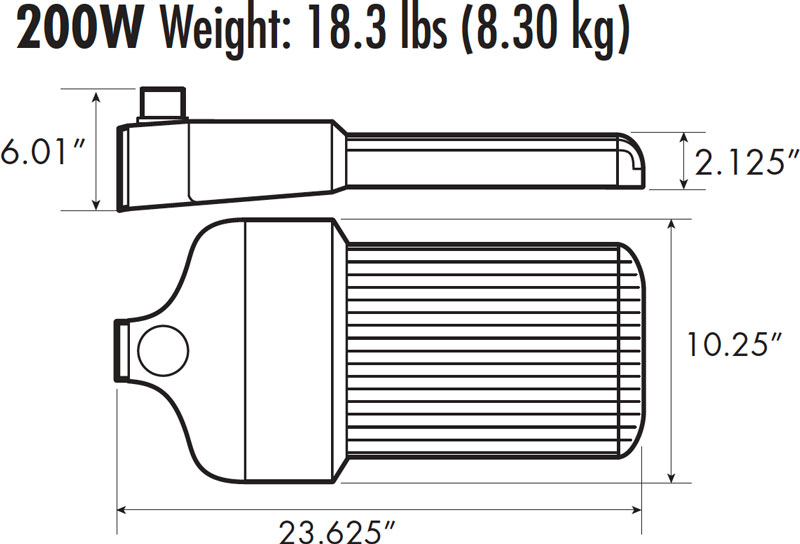

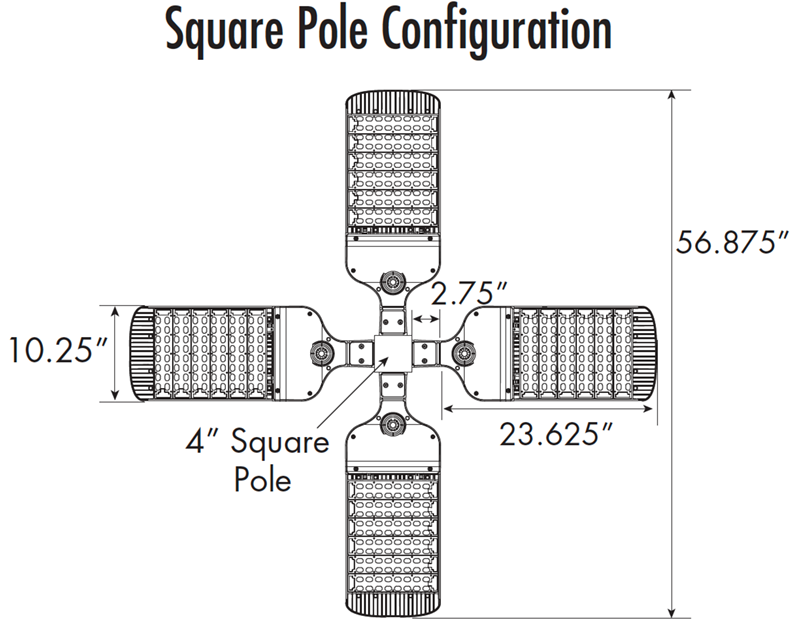

Dimensions
Environmentals (for wattages 120-200W)
| Distribution Type | B-U-G Rating |
|---|
| Type II | B3-U0-G3 |
|---|
| Type III | B3-U0-G3 |
|---|
| Type IV | B3-U0-G2 |
|---|
| Type V | B4-U0-G3 |
|---|
| Wattage | EPA (ft2)* |
|---|
| 120W | 0.67 |
|---|
| 150W | 0.70 |
|---|
| 200W | 0.78 |
|---|
| *Fixture w/o mounting accessory |
|---|

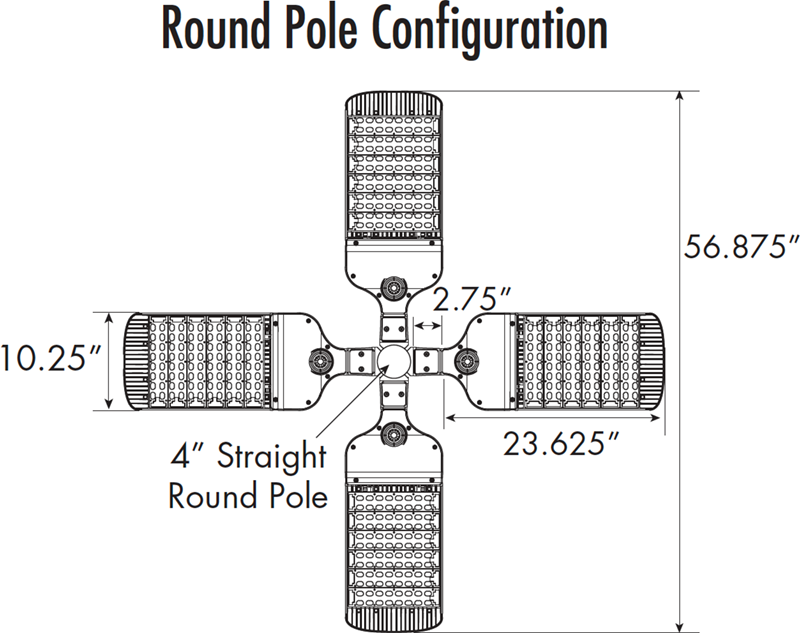

Drill Templates
Mounting Accessories for 120-200W (order as separate line items)
| Part# | Description | Weight (lbs) | Accessory EPA (ft2) |
|---|

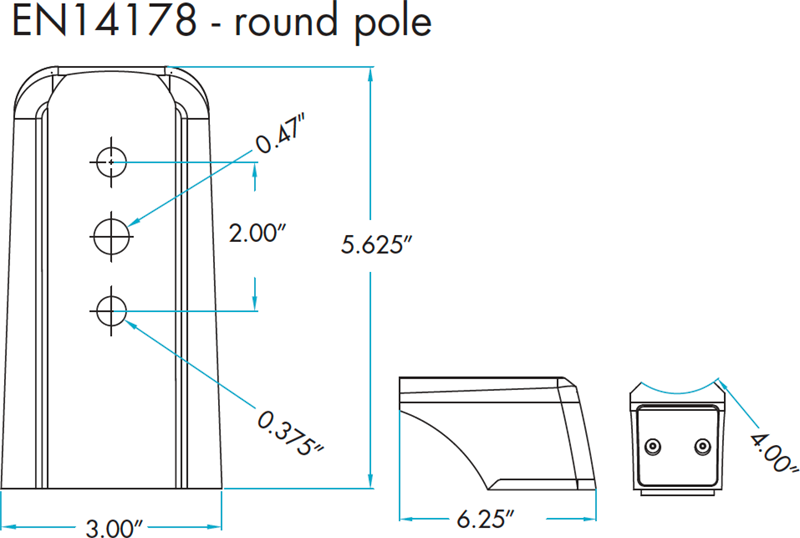

| EN14178 | Round pole straight arm - bronze | 2.3 | 0.14 |
|---|

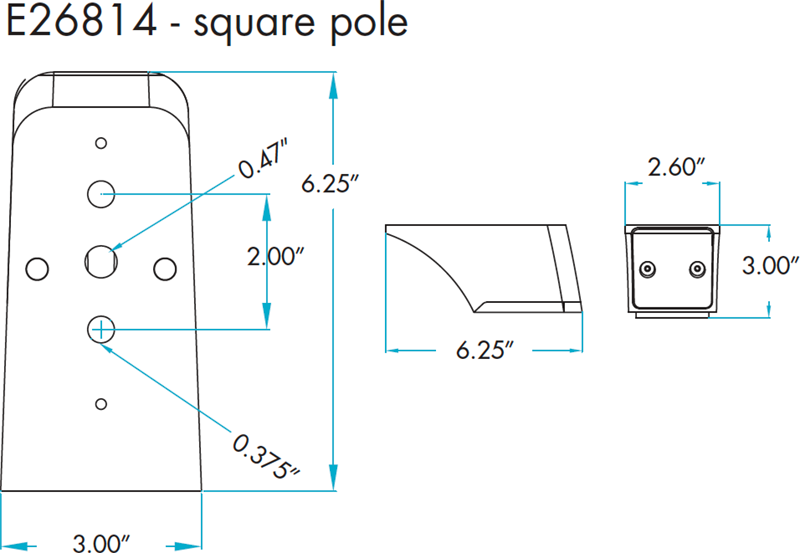

| EN26814 | Square pole mount - bronze | 2.0 | 0.11 |
|---|

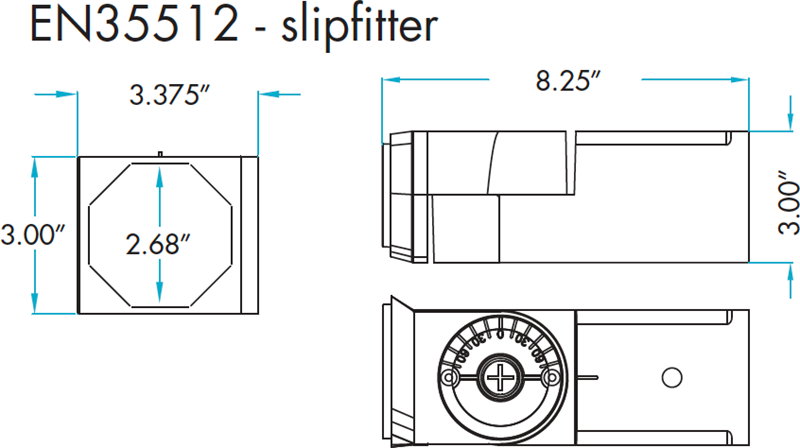

| EN35512 | Adjustable slipfitter - bronze | 3.6 | 0.19 |
|---|

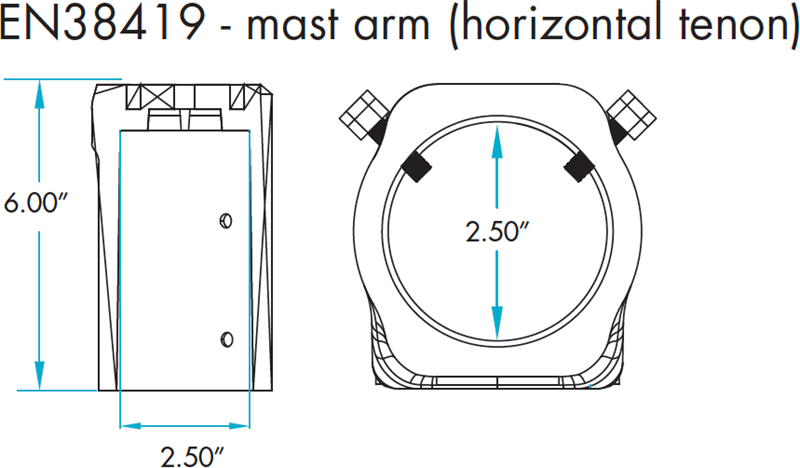

| EN38419 | Mast arm (Horizontal tenon) - bronze | 6.7 | 0.13 |
|---|

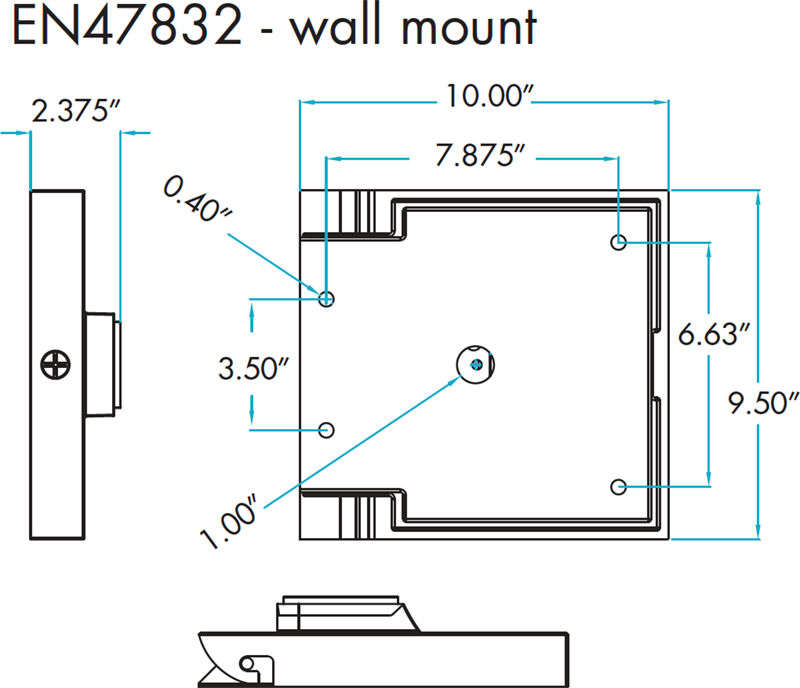

| EN47832 | Wall mount - bronze | 2.8 | 0.17 |
|---|
Photocell Accessories (order as separate line items)
| Part# | Description |
|---|
| PH12415 | 3-Pin Twist lock photocell (120-277V) |
|---|
| PH81156 | 3-Pin Twist lock photocell (480V) |
|---|
| PH87145 | 3-Pin Twist lock photocell (347V) |
|---|
| PH81975 | Replacement shorting cap |
|---|
Wireless Control Accessories (order as separate line items)
| Part# | Description |
|---|
| WCN-7P-UNV | Synapse® Twist lock controller |
|---|
| WCG-450 | Synapse® Gateway |
|---|
Miscellaneous Accessories (order as separate line items)
| Part# | Description |
|---|
| SP12714 | 120-277V surge protector |
|---|
| SP12826 | 347-480V surge protector |
|---|
